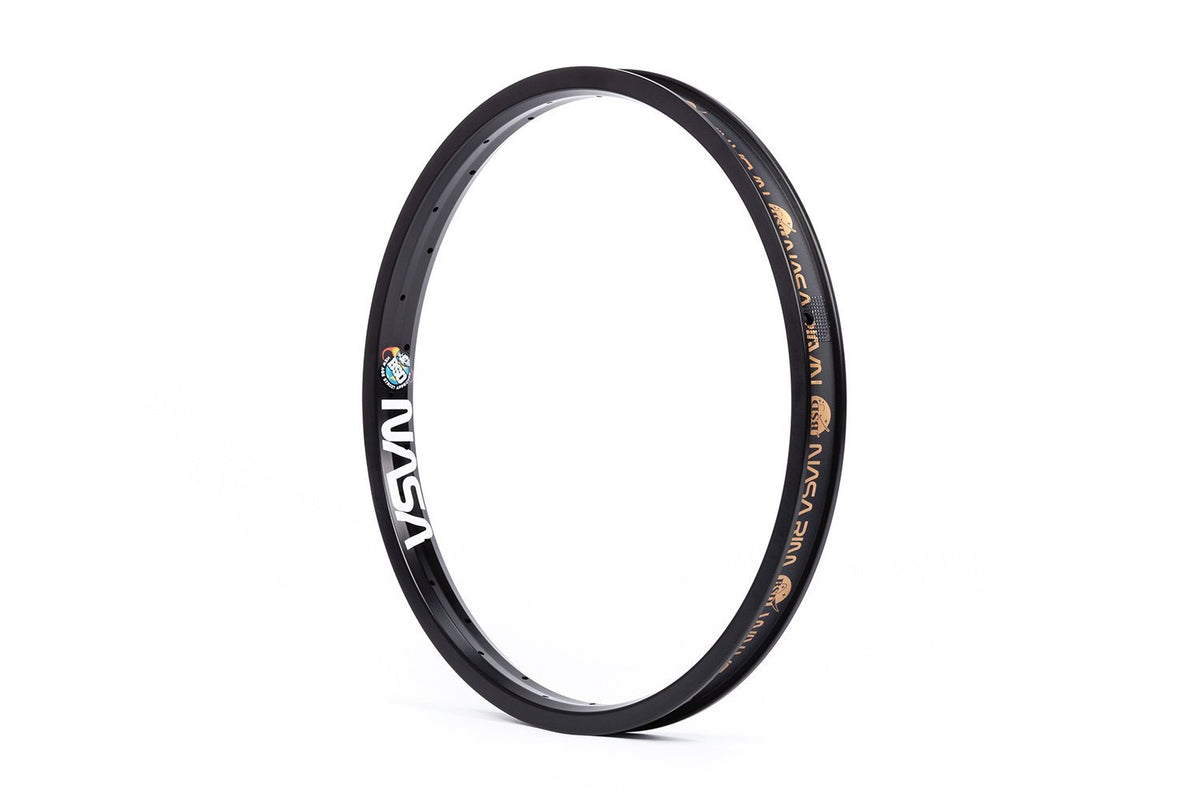

BSD NASA RIM - 6066-T6 BLK

Description

The NASA rim is designed to be stiff both laterally and radially. Based on an I-beam design with extra thick tapered sidewalls, tapered spoke seats, cross over lacing and a curved inner strut.

The NASA rim is constructed from space age 6066-T6 aluminium which is much stronger than the cheaper 6061 alloy traditionally used in most rims (+34% tensile strength vs 6061-T6). Intergalactic...

- I-beam design welded rim
- Extra thick tapered sidewalls
- Extra thick tapered spoke seats
- Aligned cross over lacing
- Curved inner strut
- Can be used with brakes

TECH SPECS

Material 6066-T6
Outer Diameter 419mm
ERD 388mm
Width 34mm
Rim Height 18mm
Weight 550g
